OSFP 400G SR8 850m 100m OM3 MPO-16 APC Flat Top MMF Optical Transceiver Module

OT-400G-OSFP-SR8

$269.00

Add to Quote
  • OSFP MSA, maximum power consumption: 12W.
  • 8×53.125Gbps electrical interface.
  • 8×53.125Gbps optics architecture.
  • 400Gbps data transmission over 100m on MMF.
  • MPO-16 receptacles and 3.3V power supply.
  • Built-in digital diagnostics for real-time monitoring.
  • RoHS compliant and IEEE 802.3 bs compliant.
  • Ideal for DCIs, 400G Ethernet, and enterprise networks.

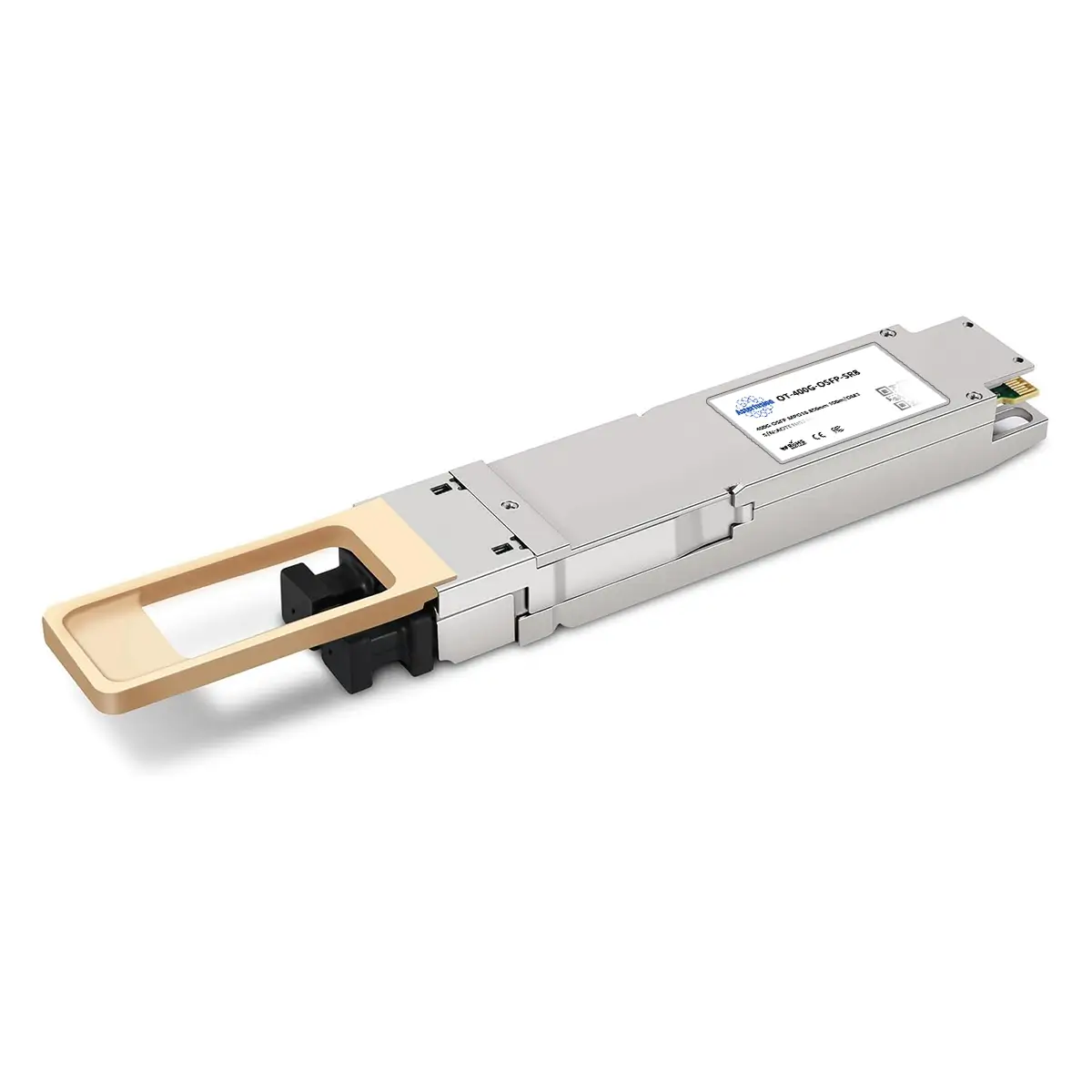

OT-400G-OSFP-SR8--Optical-Transceiver-Module-1

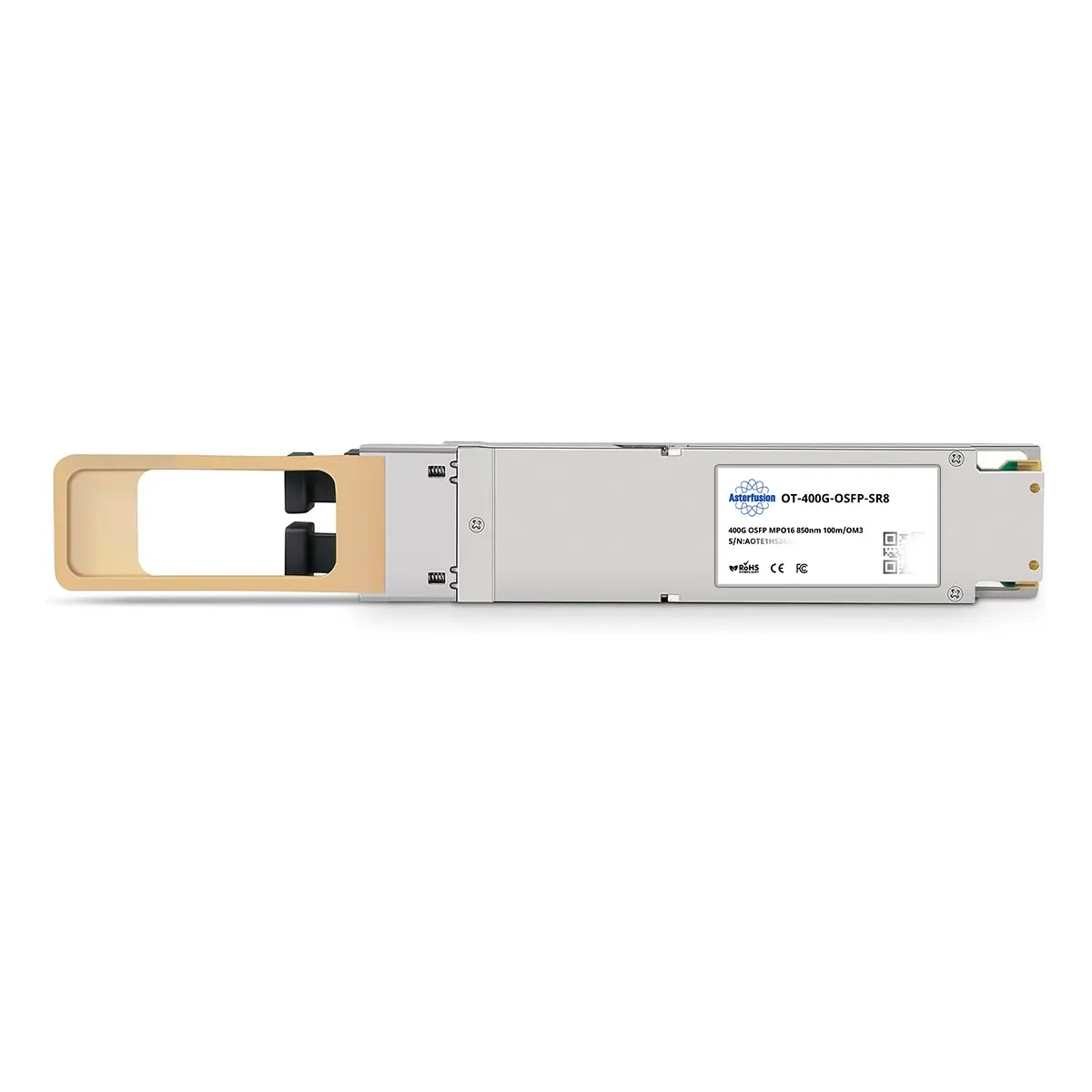

OT-400G-OSFP-SR8--Optical-Transceiver-Module-2

MSA Compatible 400G OSFP SR8 Optical Transceiver Module (MMF 850nm, 100m(OM3), MPO-16 )

Asterfusion 400G OSFP SR8 MMF optical transceiver module has been specially designed to meet the challenging demands of artificial intelligence training fabrics and hyperscale data centers or high-performance computer environments. This optical module provides an aggregate 425 Gbps data rate via eight full-duplex, independent channels that each operate at 53.125 Gbps.

Built on the proven technology based on 850nm VCSEL and featuring the latest 8-channel photo-detector array, this transceiver is able to transmit distances of up to 100 meters across OM3 multi-mode fibers that include forward error correction that ensures reliability even in the most demanding network situations. Hot-pluggable OSFP design, paired with MPO-16 connectivity as well as comprehensive Digital Diagnostic capabilities, provides users with the ability to monitor and adjust their settings needed to ensure seamless deployment and continuous maintenance. With power consumption that is optimized down to less than 12W, and operating temperatures that range from 0degC up to 70degC this RoHS-compliant transceiver offers outstanding energy efficiency and performance without compromising.

Specification

Form FactorOSFPVendor NameAsterfusion
MediaMMFMax. Cable Distance100m(OM3)
Data Rate425Gbps(8x53.125Gbps)Wavelengths Range850nm
Transmitter TypeVCSELReceiver Type PIN
ConnectorMPO-16DDM/DOMSupported
Extinction Ratio3dBPower Consumption<12W
Supply Voltage3.3VHumidity(non-condensing)0-85%
Operating Case Temperature0 to 70°C (32 to 158°F)Electrical Interface Hot pluggable
Storage Temperature-40 to 85°C (-40 to 185°F)Application InfiniBand NDR; 400G Ethernet
Part NumberOT-400G-OSFP-SR8ProtocolsOSFP MSA and CMIS compliant; IEEE 802.3bs

Certifications

icon-FC
icon-CE
icon-RoHS

Related Products

400G-QSFP-LR4-Optical-Transceiver-Module-1

400G LR4 QSFP112 CWDM4 10km Optical Transceiver Module

400G-QSFP-DR4-Optical-Transceiver-Module-1

400G DR4 QSFP112 1310nm 500m Optical Transceiver Module

400G-QSFP-VR4-Optical-Transceiver-Module-1

400G VR4 QSFP112 850nm 50m Optical Transceiver Module

    Questions & Answers

    What is an OSFP transceiver module?
    An OSFP (Octal Small Form-factor Pluggable) transceiver module is a high-speed optical transceiver designed for data centers.

    What is the maximum data rate of the Asterfusion 400G OSFP SR8?
    The Asterfusion 400G OSFP SR8 optical transceiver module delivers a total aggregate data rate of 425 Gbps with Forward Error Correction (FEC). It features 8 independent channels, each operating at 53.125 Gbps, providing exceptional bandwidth for high-performance applications.
    What is the maximum transmission distance for the 400G OSFP SR8?
    The optical transceiver module supports transmission distances up to 100 meters over OM3 multi-mode fiber with FEC. This makes it suitable for intra-data center connections and campus network deployments where extended reach is required.
    What wavelength does the 400G OSFP SR8 use?

    The transceiver operates at 850nm wavelength using an 8-channel VCSEL (Vertical Cavity Surface Emitting Laser) array. The center wavelength is 850nm with a range of 840-860nm, optimized for multi-mode fiber transmission.

    What fiber connector does the 400G OSFP SR8 use?

    A: The transceiver uses an MPO-16 (also known as MTP-16) connector interface. This high-density connector supports the 8 transmit and 8 receive channels required for 400G operation over multi-mode fiber.
