CX206P-24S-M-H

24x10Gb SFP+, 6x100Gb QSFP28/40Gb QSFP+ L3 Leaf & Core Switch, Enterprise SONiC Ready, MLAG VXLAN Support

  • 24x10GbE/1GbE SFP+ downlinks, 6x100GbE/40GbE QSFP28 uplinks
  • Turn key enterprise SONiC AsterNOS preloaded
  • Essentials features for campus core and hyper converged including MC-LAG, VXLAN, QoS ,BFD ,IPSG ,etc
Please login to request a quote

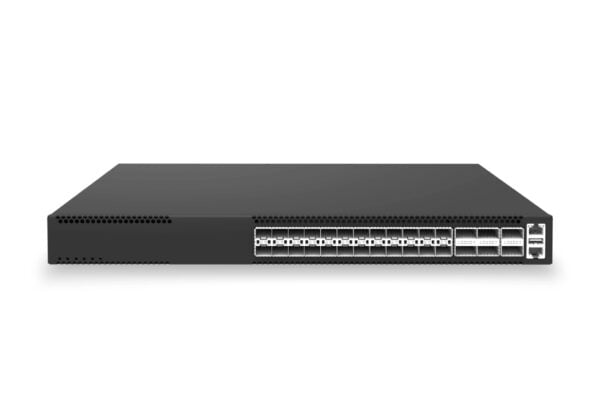

CX206P-24S-M-H 24x10G Aggregation Switch -1
CX206P-24S-M-H 24x10G Aggregation Switch -2
CX206P-24S-M-H 24x10G Aggregation Switch Panel-1
CX206P-24S-M-H 24x10G Aggregation Switch -Panel-2

24 Port 10G SFP+ L3 Leaf & Core switch, 6 x 100G QSFP28 /40G QSFP+ Uplinks, Enterprise SONiC Ready, Marvell Prestera Aldrin2

The Asterfusion CX206P-24S-M-H switch is equipped with 24x10Gb SFP+, 6x100Gb/40Gb QSFP28 QSFP+ ports. It’s well suited for enterprise distribution and core, high bandwidth interconnection for video distribution and security. It can also be used as the cost-effective ToR switch for private cloud. This open network switch is preloaded with AsterNOS, a feature-rich and high-quality assured enterprise NOS distribution of SONiC which is a container-based application development and deployment makes the switch easy to expand new functionalities even by users. It supports complete Layer 3 IPv4 and IPv6 routing protocols as well as functions such as VXLAN for virtual network expansion.

Specifications

Ports24 x 10G SFP+, 6 x 100G QSFP28Switch ASICMarvell Aldrin2
Switching Capacity1.09TbpsMac Address Entries32K
Forwarding Rate600MppsIPv4 Prefix Routes16K
RAM4GBIPv6 Prefix Routes8K
Flash Memory32GB eMMCARP Entries16K
Max. Power Consumption125WInput Range100-240V AC
Packet Buffer6MBPower Module1+1 Hot-pluggable
Rack Space1RUFan Modules2+1 Hot-pluggable
Dimensions (HxWxD)44 x 440 x 470mmAirflowFront to Rear
Weight9KGOperating Temperature0 - 45℃

Hardware Panel

sonic-aggregation-switch-panel_CX206P-24S-M-H

Software

Features

layer-2-features-icon

Layer 2 Features

  • 4K VLANs
  • Voice VLAN
  • Multiple Spanning Tree Protocol
  • QinQ
  • Link Aggregation Control Protocol
  • Multi-Chassis Link Aggregation
  • VLAN Trunking
  • Link Layer Discovery Protocol (LLDP)
  • LLDP Enhancements for PoE
  • Port Isolation
  • Jumbo Frames (9216 Bytes)
  • IGMP Snooping
  • Storm Control
  • Monitor Link
  • BPDU Guard, BPDU Filter
  • Loopback Detection
layer-3-features-icon

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • IGMP v2/v3
  • Route Map
  • VRRP
  • GRE
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP
security-features-icon

Security Features

  • Service ACLs
  • ACL Logging and Counters
  • Control Plane Policing (CoPP)
  • Dynamic ARP Inspection (DAI)
  • IP Source Guard v4/v6
  • DHCPv4/v6 Relay
  • DHCPv4/v6 Snooping
  • ND Snooping
  • 802.1x Authentication
  • Portal Authentication
  • MAC Authentication Bypass (MAB)
  • Dynamic VLAN Assignment
  • TACACS+
  • RADIUS
  • IPSG/DAI/SAVI
management-and-monitoring-icon

Management and Monitoring

  • Asteria Campus Controller
  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • sFlow
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status
quality-of-service-icon

Quality of Service (QoS)

  • 8 Queues per Port
  • 802.1p Based Classification
  • DSCP Based Classification
  • Strict priority queueing
  • DWRR Scheduling
  • Policing/Shaping
  • Rate Limiting
virtualization-features-icon

Virtualization Features

  • VXLAN Centralized/Distributed Gateway
  • EVPN Type 2/3/5

 icons5-networking MPLS(Optional)

  • Enable Global MPLS
  • Enable MPLS based on the interface
  • Static LSP
  • MPLS LDP
  • LDP security mechanisms
  • MPLS QoS
  • VPWS/VPLS/MPLS L3VPN

Network Packet Broker Functionality (Optional)

the-software-architecture-of-the-sonic-based-packet-broker

The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC. This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication. →For more←
