Passive Optical Network (PON) technology is a cornerstone for high-speed fiber broadband, using a point-to-multipoint design that delivers optical signals from a central OLT to multiple ONUs/ONTs via passive splitters—cutting costs and boosting efficiency. Key PON variants like GPON, EPON, XG-PON, and XGS-PON differ in standards, bandwidth, and applications. This article explains and compares these technologies to help you find the ideal PON solution for your needs.
Asterfusion proudly offers a mature GPON solution and is preparing to launch an advanced XGS-PON solution, both of which can be seamlessly managed by a unified OpenWiFi compatible controller, ensuring we stay ahead in meeting the evolving demands of modern networks.
What is GPON?
GPON (Gigabit Passive Optical Network) is a PON technology based on the ITU-T G.984 standard, defined by the International Telecommunication Union (ITU-T). It is one of the most widely deployed PON variants today, particularly suited for large-scale FTTH (Fiber to the Home) networks operated by telecom carriers.
GPON delivers up to 2.488 Gbps downstream and 1.244 Gbps upstream in an asymmetric design, using 1490 nm for downstream and 1310 nm for upstream, with support for wavelength-division multiplexing (WDM). Typical split ratios are 1:32 or 1:64, reaching up to 1:128, and transmission distances can be as long as 20 km.
The protocol uses GEM (GPON Encapsulation Method) with TDM/TDMA to achieve around 90% bandwidth efficiency, making it ideal for high-bandwidth, high-efficiency scenarios such as urban residential areas, enterprise networks, and triple-play services (voice, data, and video). Thanks to its maturity and efficiency, GPON has long dominated the market—but as data demands grow, its bandwidth limitations are becoming more apparent.
What is EPON?
EPON (Ethernet Passive Optical Network) is a PON technology based on the IEEE 802.3ah standard, defined by the Institute of Electrical and Electronics Engineers (IEEE). Built on the Ethernet protocol, it emphasizes compatibility with existing Ethernet equipment.
EPON features a symmetric design with 1.25 Gbps downstream and upstream (with the 10G-EPON variant reaching up to 10 Gbps). It uses the same wavelengths as GPON—1490 nm downstream and 1310 nm upstream—with typical split ratios of 1:16 or 1:32, and a maximum of 1:64. The transmission distance can reach 20 km. Its protocol is based on Ethernet frames, with TDMA for traffic scheduling, achieving about 70% bandwidth efficiency.
EPON is well-suited for enterprise intranets, campus networks, and FTTH deployments by small to mid-sized ISPs, especially in data-centric environments. Its main advantages are low cost and simple configuration, though it offers lower bandwidth and efficiency compared to GPON.
What is XG-PON?
XG-PON, short for 10 Gigabit Passive Optical Network, is a high-speed passive optical access technology based on the ITU-T G.987 standard. Designed to deliver higher bandwidth and longer transmission distances, XG-PON offers a maximum downstream rate of 10 Gbps and an upstream rate of up to 2.5 Gbps, making it an asymmetric 10G PON technology.
With its 10 Gbps downstream and 2.5 Gbps upstream speeds, XG-PON easily supports ultra-HD video, cloud computing, and high-volume data transfers. Its asymmetric design—more bandwidth downstream than upstream—matches the usage patterns of most homes and businesses. Using wavelength-division multiplexing (WDM), it can coexist with traditional GPON systems, enabling gradual upgrades. It supports transmission distances of up to 20 km, offers high split ratios (1:64 or even higher), and delivers enhanced QoS to ensure high-quality voice, video, and data services.
Typical XG-PON applications span a wide range of high-bandwidth scenarios, including delivering high-speed broadband access to homes and businesses for 4K/8K streaming, online gaming, and large file transfers; providing reliable, high-capacity interconnections across enterprise campuses and multi-building environments; enabling efficient multimedia content distribution such as video-on-demand and cloud services; and supporting 5G mobile backhaul as well as metro network upgrades to enhance overall wireless network performance.
What is XGS-PON?
XGS-PON (10 Gigabit Symmetric Passive Optical Network) is a next-generation PON technology based on the ITU-T G.9807.1 standard. As an evolution of GPON, it is designed to meet the high-bandwidth demands of applications such as 5G, 8K video streaming, and cloud services.
Unlike other PON variants, XGS-PON is fully symmetric, providing 10 Gbps downstream and 10 Gbps upstream. It operates on 1577 nm for downstream and 1270 nm for upstream wavelengths, using WDM to coexist with GPON for smooth migration. XGS-PON typically supports split ratios of 1:64 or higher, reaching up to 1:256, with transmission distances ranging from 20 to 40 km depending on configuration. Its protocol is based on XGEM encapsulation with TDM/TDMA, ensuring high bandwidth efficiency.
Thanks to its symmetric bandwidth, XGS-PON is ideal for high-density, high-demand scenarios such as smart cities, data center interconnects, and future-ready 10G broadband services—all while maintaining compatibility with existing GPON deployments.
Asterfusion will soon release the XGS-PON Solution — stay tuned!
Contrast of GPON, EPON, XG-PON, and XGS-PON
| Dimension | GPON | EPON | XG-PON | XGS-PON |
| Standards Organization | ITU-T G.984 | IEEE 802.3ah/802.3av | ITU-T G.987 | ITU-T G.9807.1 |
| Bandwidth | Downstream 2.488 Gbps / Upstream 1.244 Gbps | 1.25 Gbps symmetric (10G-EPON up to 10 Gbps) | Downstream 10Gbps / Upstream 2.5 Gbps | 10Gbps symmetric |
| Symmetry | Asymmetric | Symmetric | Asymmetric | Symmetric |
| Bandwidth Efficiency | ~90% | ~70% | ~90% | ~90% |
| Split Ratio | Common 1:32 / 1:64 (max 1:128) | Common 1:16 / 1:32 (max 1:64) | Common 1:64 (max 1:128) | Common 1:64 (max 1:256) |
| Protocol Encapsulation | GEM (GPON Encapsulation Method) | Ethernet frames | XGEM | XGEM |
| Cost | Medium | Low | Higher | High |
| Application Scenarios | Urban residential, Rural broadband, smart campuses, and enterprise fiber | SMEs, campus networks, data-focused environments | High bandwidth demand (4K/8K video, cloud) | High-density users, 10G broadband, DC interconnect |
| Compatibility | — | — | Coexist with GPON (WDM) | Coexist with GPON (WDM) |
Comprehensive Analysis of Technical Differences of EPON, GPON, XG-PON, and XGS-PON

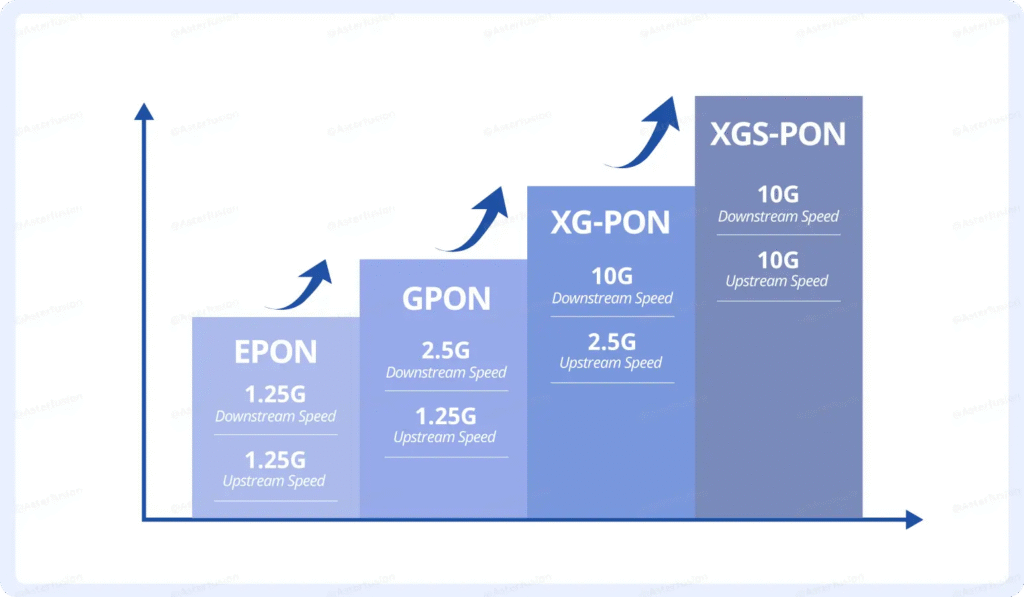

Data Rates and Symmetry
- EPON: Features symmetric bandwidth with both upstream and downstream at 1.25 Gbps. The 10G-EPON variant supports symmetric 10 Gbps rates, making it suitable for enterprise and campus networks where symmetric traffic demands are high.
- GPON: Offers asymmetric bandwidth with downstream at 2.5 Gbps and upstream at 1.25 Gbps, ideal for residential internet access, video-on-demand, and other downstream-heavy applications.
- XG-PON: Provides 10 Gbps downstream and 2.5 Gbps upstream, meeting high enterprise bandwidth demands but still has upstream bottlenecks, such as in video surveillance backhaul.
- XGS-PON: Delivers symmetric 10 Gbps bandwidth, effectively resolving upstream bottlenecks and is well suited for live streaming, cloud storage, and 5G front-haul scenarios.
Split Ratio and Transmission Distance
All four technologies support split ratios up to 1:128 and maximum transmission distances up to 20 km. However, XG-PON and XGS-PON offer higher bandwidth allocation efficiency, supporting more users at higher speeds
Performance and Efficiency
EPON features simple configuration and lower costs, making it suitable for small to medium-sized networks. GPON fulfills basic broadband needs but has limitations in supporting high-bandwidth applications. XG-PON significantly improves downstream speed, while XGS-PON’s symmetric bandwidth ensures balanced upload and download performance, making it the ideal choice for modern high-performance networks.
Coexistence and Compatibility of GPON, XG-PON, and XGS-PON
Coexistence:
Wavelength Division Multiplexing (WDM) technology enables simultaneous transmission of multiple wavelengths over a single fiber without interference. Since GPON and 10G PON technologies (including XG-PON and XGS-PON) use different upstream and downstream wavelengths, they can coexist on the same fiber. For example, GPON uses 1310 nm for upstream and 1490 nm for downstream, whereas XG-PON and XGS-PON use 1270 nm upstream and 1577 nm downstream, respectively.
Compatibility:
The ITU-T standards G.984 and G.988 specify the technical requirements for GPON and XG-PON/XGS-PON respectively, including coexistence provisions. Adhering to these standards, manufacturers can design solutions that support seamless coexistence. In other words, devices supporting GPON can also operate within XG-PON or XGS-PON networks, achieving backward compatibility. This compatibility avoids costly full equipment replacements during network upgrades and facilitates a smooth transition to higher-speed PON technologies.
It is important to note that although coexistence and compatibility are technically feasible, practical network upgrades require careful planning and management to ensure seamless transitions between PON technologies and optimal network performance.
The Evolution Trends of PON Technology :
- Progressing from gigabit-class systems (EPON/GPON) to 10G-class systems (XG-PON/XGS-PON)
- Increasing emphasis on symmetric bandwidth to meet the needs of cloud services, video conferencing, and remote work
- Integration with WDM, open switches, and OpenWiFi-standard network controllers to enable unified management of APs and switches
How to Choose Between GPON, EPON, XG-PON, and XGS-PON?
The choice mainly depends on your bandwidth needs, budget, compatibility, and future plans.
- For small networks with limited budgets, EPON offers the best cost-effectiveness—affordable, simple, and sufficient.
- If you’re an operator prioritizing bandwidth efficiency and stability, GPON is more suitable—mature, well-established, but with moderate bandwidth.
- For 10G access with heavier downstream demand, XG-PON is a good fit, offering 10G downstream and 2.5G upstream, and can coexist with GPON for easy upgrades.
- Lastly, if you need symmetrical 10G bandwidth or plan for future high-bandwidth applications, XGS-PON is the long-term choice, offering the best scalability though at higher cost.
If you require unified management via OpenWiFi, Asterfusion’s GPON and upcoming XGS-PON solutions are ready to support that.
