CX204Y-24MT-M-S

24×2.5 G RJ45 L3 Access Switch, 4×25 G SFP28 Uplinks, Enterprise SONiC Ready

  • 24 Ports 2.5G RJ45 with 25G uplinks
  • Enterprise SONiC Distribution preload
  • Supports VXLAN, BGP-EVPN, GRE tunnels, and VRF
  • Optional PTP for sub-20ns precision clock synchronization
Please login to request a quote

24×2.5 G RJ45 POE+ Switch, 4×25 G SFP28 Uplinks, Enterprise SONiC Ready, Marvell AlleyCat 5X

The Asterfusion CX204Y-24MT-M-S is an incredibly robust enterprise access switch specifically designed for next-generation campus as well as enterprise networks. With 24×2.5GE/1GE RJ45 ports as well as SFP28 uplinks of 4x25G/10G, it provides seamless high-speed connectivity for a diverse range of workloads.

The CX204Y-24MT-M-S is preloaded using AsterNOS Enterprise SONiC. AsterNOS Enterprise SONIC distribution, the CX204Y-24MT-M-S offers a complete range of Layer 2/3 networking capabilities, such as VXLAN/BGP EVPN virtualization and dual-stack IPv4/IPv6 support. It comes with a range of security options, such as DHCP Snooping, Dynamic ARP Inspection, as well as ACL filters. The CX204Y-24MT-M-S safeguards enterprises from threats both external and internal.

This 24-port 2.5 G switch can also support PTP for extremely precise timing, which makes it ideal for applications that require precision in broadcasting automation, automation, and 5G networks. Administrators have access to a range of flexible options for managing their network, such as CLI, SNMP, Syslog, ZTP, and cluster configuration for large-scale deployments. The compact 1U model and a low power consumption of 76W, and dependable cooling through two fan units, the CX204Y-24MT-M-S is a great solution for businesses looking to increase scalability, speed, and efficiency.

Specifications

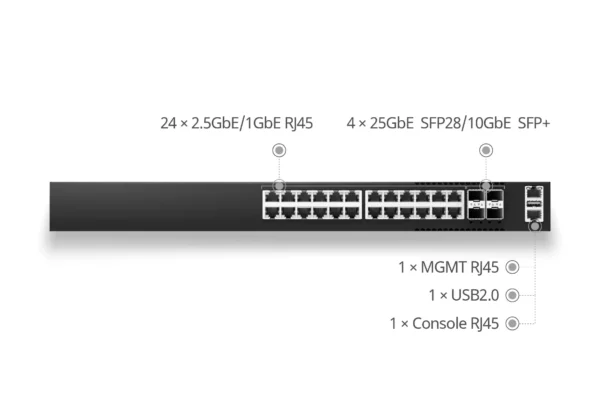

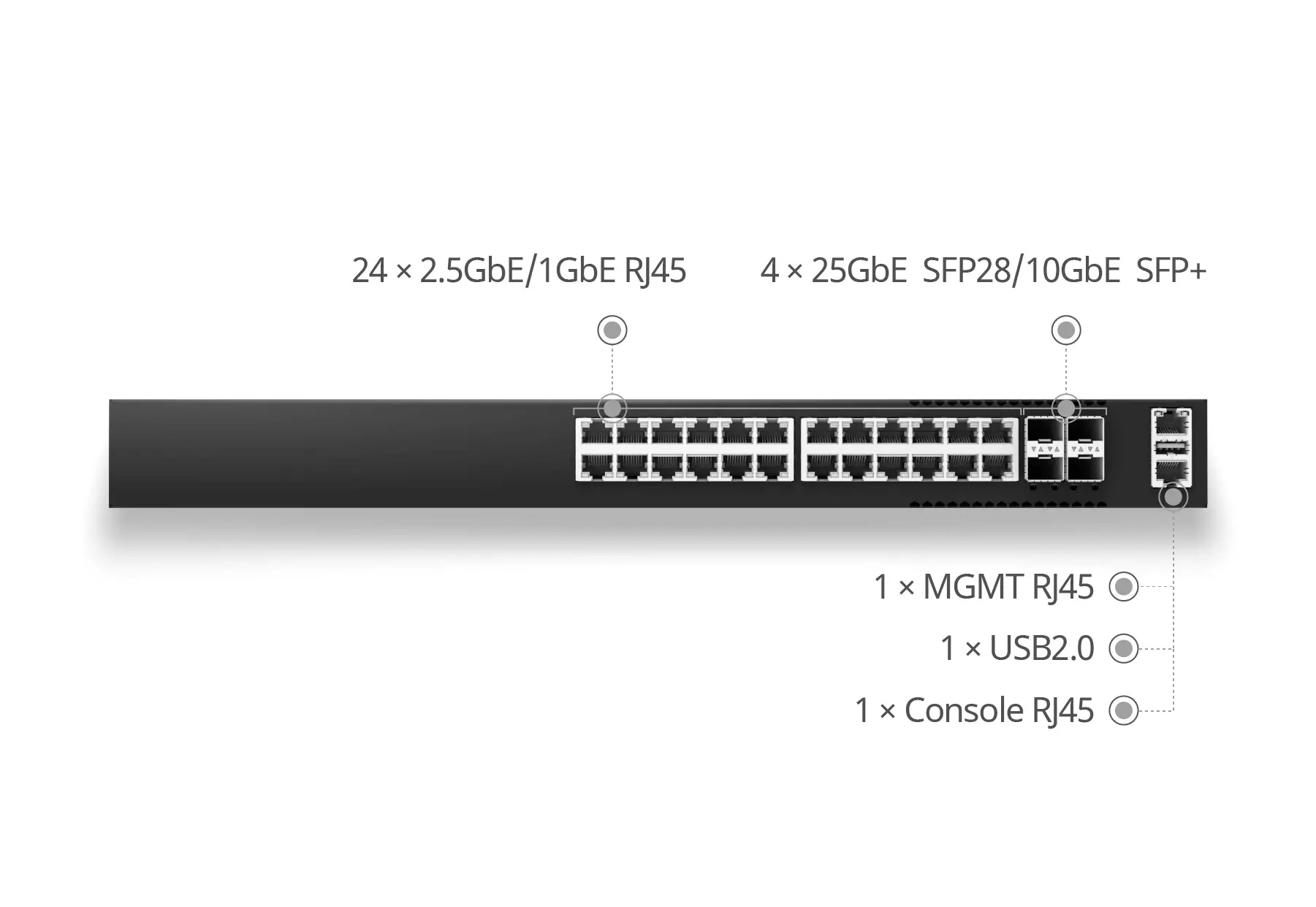

Network Interface24 x 2.5G/1G RJ45, 4 x 25G/10G SFP28Managed Interface
1 x USB2.0, 1 x Console RJ45, 1 x MGMT RJ45
Chip ModelMarvell Prestera Alley Cat5XInput Voltage Range100 - 240V AC
AirflowSide to sideMax. Power Consumption76W
Ambient Operating Temperature0 - 45 ℃Power Supply100W
Ambient Relative Humidity5% - 90% (non-condensing)Power Module1 Built-in Power
Dimension (HxWxD)44 x 440 x 470mmFan Modules2 Built-in Fans
Weight3.6KGsRack Space1RU

Optimized Software for Advanced Workloads-AsterNOS

AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.
Feature Lists ↓

Optimized Software for Advanced Workloads – AsterNOS

AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.
Feature Lists ↓

Software Features

layer-2-features-icon

Layer 2 Features

  • 4K VLANs / Voice VLAN
  • Multiple Spanning Tree Protocol
  • QinQ
  • Link Aggregation Control Protocol
  • MLAG / VLAN Trunking
  • Link Layer Discovery Protocol (LLDP)
  • LLDP Enhancements for PoE
  • Port Isolation
  • IGMP Snooping
  • BPDU Guard, BPDU Filter
  • Loopback Detection
layer-3-features-icon

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • IGMP v2/v3
  • Route Map
  • VRRP
  • GRE
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP

security-features-icon

Management and Monitoring

  • Asteria Campus Controller
  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • sFlow
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status

Quality Certifications

ISO-9001-SGS
ISO-14001-SGS
ISO-45001-SGS
ISO-IEC-27001-SGS
fcc-icon
ce-icon

Features

Advanced Routing Capabilities

Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
ai-ml-hpc

Advanced Network Protection Features

This model provides strong L2/L3 security for network edge and core, including storm control, DHCPv4/v6 Snooping, ND Snooping, RA Guard, and SAVI (source IP validation). It adds DAI, IP Source Guard (IPv4/IPv6), and CoPP to block spoofing, man-in-the-middle attacks, and control plane overload—ensuring a secure, resilient network.attacks, and control plane overload—ensuring a secure and resilient network environment.
ai-ml-hpc
BFD-Based Link Fault Detection & Re-routing in Sub-50ms

BFD-based link fault detection and sub-50ms re-routing capabilities ensure rapid, reliable failover across critical routing protocols including OSPF, BGP, and IS-IS, minimizing network downtime and maintaining uninterrupted traffic flow even during unexpected link failures.

Achieve seamless redundancy and active-active reliability with MC-LAG support

MC-LAG support enables networks to maintain uninterrupted connectivity through seamless redundancy and active-active reliability,
ensuring zero downtime and optimal performance during link or device failures.

ai-ml-hpc

Unified Visualization, Management & O&M with OpenWiFi Network Controller

the-software-architecture-of-the-sonic-based-packet-broker
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily. →For more←

Enterprise SONiC 24 Ports 2.5G RJ45 Switches with PTP Support (Optional)

CX204Y-24MT-M-SPW4 24-port 2.5 G switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards, both through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asterfusion leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class A with a maximum time error of ≤50 ns. →For More←
the-software-architecture-of-the-sonic-based-packet-broker
the-software-architecture-of-the-sonic-based-packet-broker
CX102S-8GT-M-SWP 8 port PoE+ switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards both through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asterfusion leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class A with a maximum time error of ≤50 ns. →For More←

Network Packet Broker Functionality (Optional)

the-software-architecture-of-the-sonic-based-packet-broker

The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC.

This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication. →For more←

What’s in the box

24x1G-RJ45-L2-L3-Access-Switch-5

Resources

CX-M Series 2.5G Switches Datasheet
AsterNOS Feature List Campus Version

Warranty & Support

  • 2-year hardware warranty.
  • 1-year free software upgrades and technical support.
  • Enterprise SONiC software lifetime license included.

Warranty & Support

– 2-year hardware warranty.
– 1-year free software upgrades and technical support.
– Enterprise SONiC software lifetime license included.
