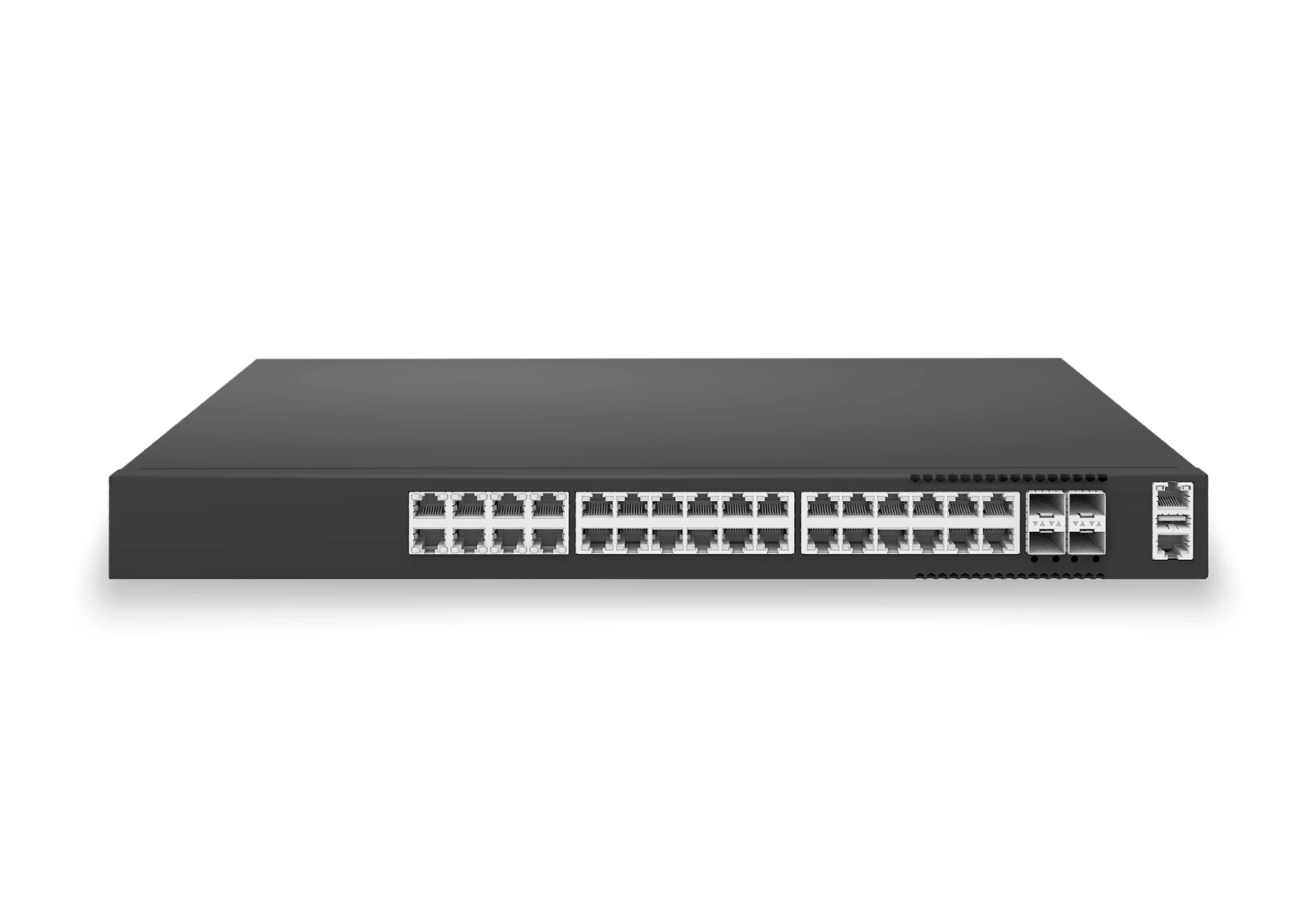

2.5G and 1G Non-PoE Switch-Main Image_CX104S-8MT24GT-M-S

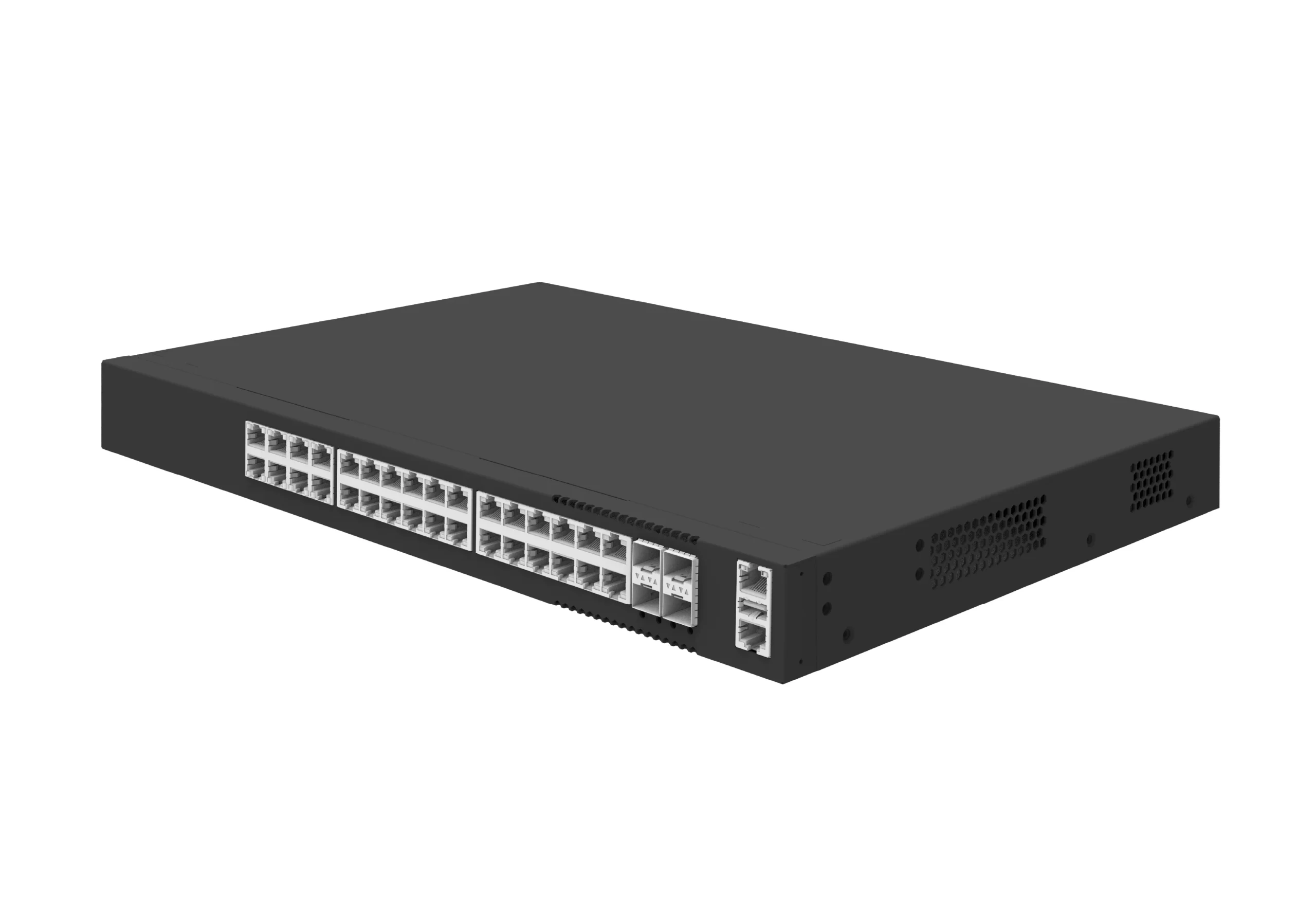

2.5G and 1G Non-PoE Switch-Secondary Image_CX104S-8MT24GT-M-S

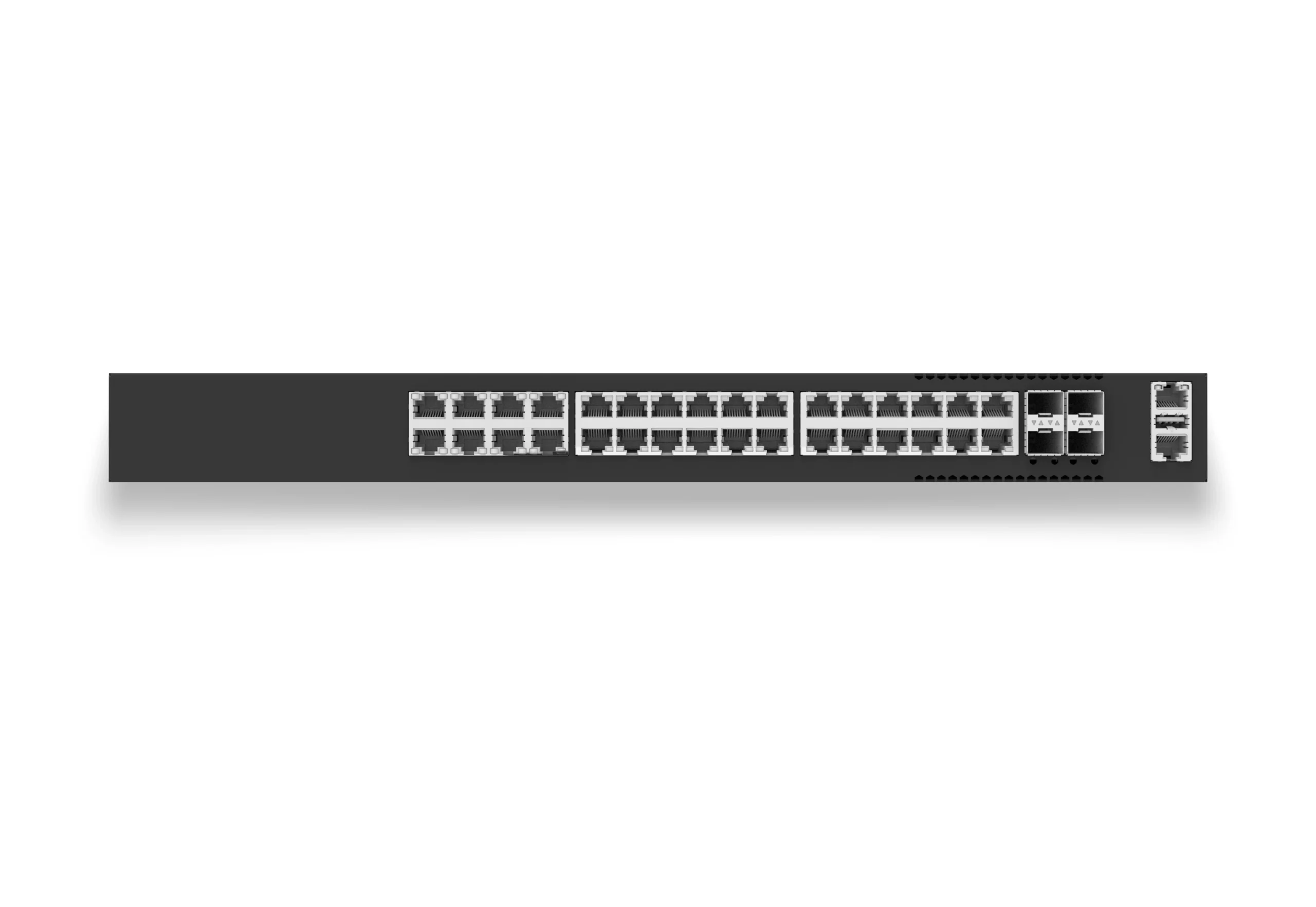

2.5G and 1G Non-PoE Switch-Front panel_CX104S-8MT24GT-M-S

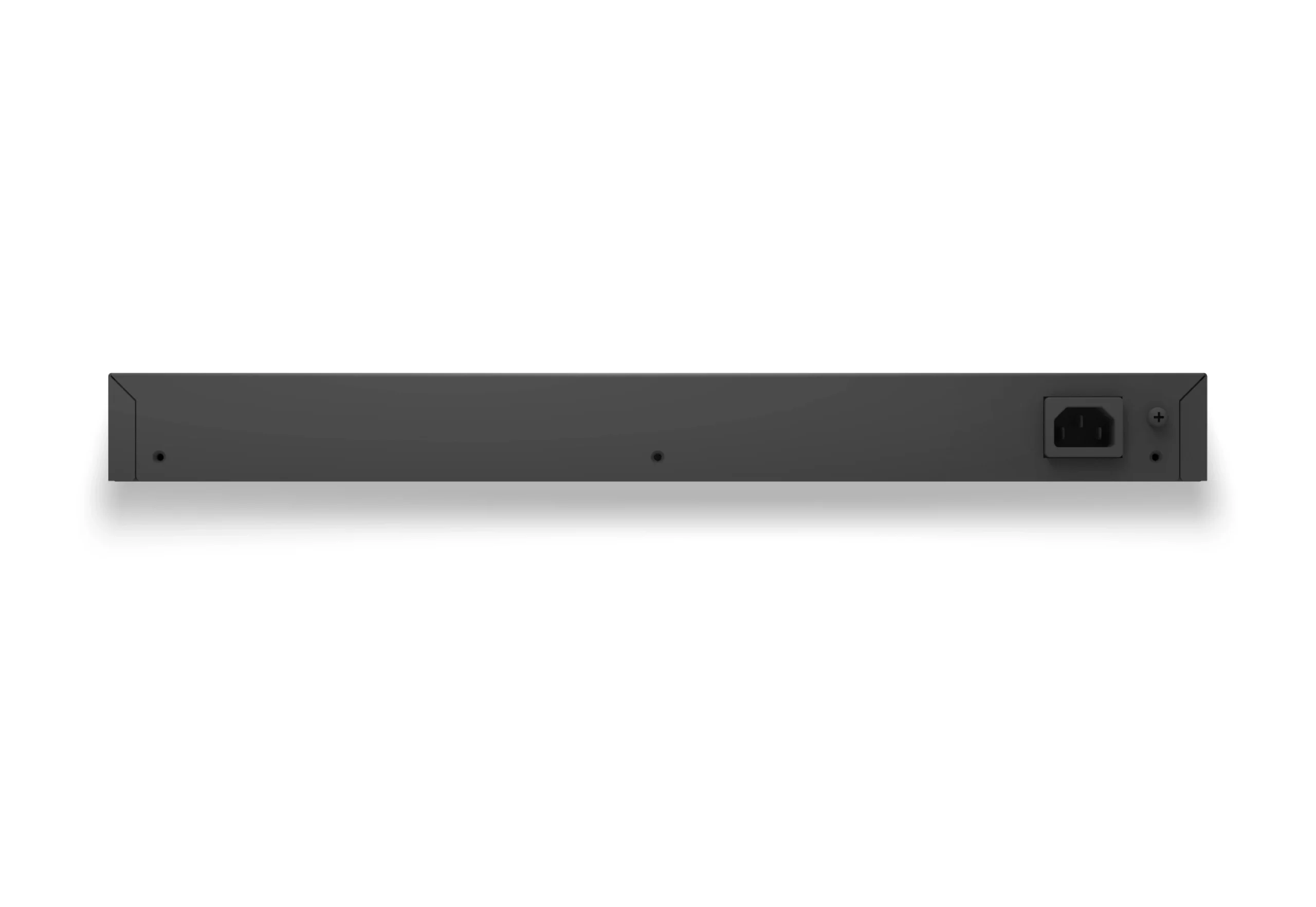

2.5G and 1G Non-PoE Switch-Rear panel_CX104S-8MT24GT-M-S

CX104S-8MT24GT-M-S

4x25Gb/10Gb SFP28, 48×2.5G RJ45 Enterprise Access Switch, 4x100Gb/40Gb QSFP28 Uplinks, Enterprise SONiC Ready

  • 8 Ports 2.5G RJ45, 24 ports 1G RJ45 with 10G uplinks
  • 1 fixed psu, fixed 3xFANs, right-to-left airflow
  • Rich Layer 2/3 features
  • Enterprise SONiC Distribution preload
Please login to request a quote

8×2.5G RJ45, 24x1G RJ45, non-PoE Switch, 4x10Gb SFP+ Uplinks, Enterprise SONiC Ready, Marvell AlleyCat 5Y

The CX104S-8MT24GT-M-S is a non-PoE switch with 8 × 2.5GBase-T ports, 24 × 1GBase-T ports, and 4 × 10G SFP+ ports. It delivers a switching capacity of 86Gbps and is powered by the Marvell Prestera (AlleyCat5Y) ASIC. Its maximum power consumption is 50W (without PoE). Powered by AsterNOS, an enterprise-grade SONiC distribution, the switch supports a wide range of Layer 2 and Layer 3 features, including routing protocols such as OSPF and BGP, as well as MC-LAG and IPv6. This access switch provides a compact and cost-effective solution for campus networks, SMBs, and enterprise networks.

Specifications

Network Interface8 x 2.5G RJ45, 24 x 1G RJ45, 4 x 10G SFP+Managed Interface
1 x USB2.0, 1 x Console RJ45
Switching Capacity86GbpsCPU
Cortex-A55
Chip ModelMarvell Prestera Alley Cat5YMemory4GB DDR4
Flash32GB EMMCPacket Buffer3MB
Input Voltage Range100-240V AC / 36-72V DCAirflowRight to Left
Ambient Operating Temperature0 - 45 ℃Max. Power Consumption50W (without PoE)
Ambient Relative Humidity5% - 90% (non-condensing)Power Module1 Built-in Power
Dimension (HxWxD)44 x 440 x 470mmFan Modules3 Built-in Fans
Weight3.6 KGRack Space1RU

Quality Certifications

ISO-9001-2015-SGS
ISO-14001-2015-SGS
ISO45001-2018-SGS
ISO-IEC-27001-2022-SGS
fcc-icon
ce-icon

Optimized Software for Advanced Workloads-AsterNOS

AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.
Feature Lists ↓

Optimized Software for Advanced Workloads – AsterNOS

AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.
Feature Lists ↓

Software Features

layer-2-features-icon

Layer 2 Features

  • 4K VLANs / Voice VLAN
  • Multiple Spanning Tree Protocol
  • QinQ
  • Link Aggregation Control Protocol
  • MLAG / VLAN Trunking
  • Link Layer Discovery Protocol (LLDP)
  • LLDP Enhancements for PoE
  • Port Isolation
  • IGMP Snooping
  • BPDU Guard, BPDU Filter
  • Loopback Detection
layer-3-features-icon

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • IGMP v2/v3
  • Route Map
  • VRRP
  • GRE
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP

security-features-icon

Management and Monitoring

  • Asteria Campus Controller
  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • sFlow
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status

Features

Advanced Routing Capabilities

Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
ai-ml-hpc

Advanced Network Protection Features

This model provides strong L2/L3 security for network edge and core, including storm control, DHCPv4/v6 Snooping, ND Snooping, RA Guard, and SAVI (source IP validation). It adds DAI, IP Source Guard (IPv4/IPv6), and CoPP to block spoofing, man-in-the-middle attacks, and control plane overload—ensuring a secure, resilient network.attacks, and control plane overload—ensuring a secure and resilient network environment.
ai-ml-hpc
BFD-Based Link Fault Detection & Re-routing in Sub-50ms

BFD-based link fault detection and sub-50ms re-routing capabilities ensure rapid, reliable failover across critical routing protocols including OSPF, BGP, and IS-IS, minimizing network downtime and maintaining uninterrupted traffic flow even during unexpected link failures.

Achieve seamless redundancy and active-active reliability with MC-LAG support

MC-LAG support enables networks to maintain uninterrupted connectivity through seamless redundancy and active-active reliability,
ensuring zero downtime and optimal performance during link or device failures.

ai-ml-hpc

Unified Visualization, Management & O&M with OpenWiFi Network Controller

the-software-architecture-of-the-sonic-based-packet-broker
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily. →For more←

Network Packet Broker Functionality (Optional)

The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC.

This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication. →For more←

the-software-architecture-of-the-sonic-based-packet-broker

Panel

2.5G and 1G Non-PoE Switch-front-panel-port indicator_CX104S-8MT24GT-M-S
2.5G and 1G Non-PoE Switch-rear-panel-port indicator_CX104S-8MT24GT-M-S
    warranty icon

    Warranty & Support

    Hardware warranty icon

    2-year hardware warranty

    Software support icon

    1-year free software upgrades & technical support

    Related Products


    Uplink Ports
    4x 10G SFP+
    2x 10G SFP+
    2x 10G SFP+
    4x 100G QSFP28
    6x 100G QSFP28
    RJ45 Ports
    8x 2.5G BASE-T
    24 x 1 G BASE-T
    8x 2.5G BASE-T
    8x 2.5G BASE-T
    -
    -
    SFP+ Ports
    -
    -
    -
    24x 10G SFP+
    24x 10G SFP+
    PoE+ Ports
    -
    -
    8x PoE+
    -
    -
    PoE++ Ports
    -
    -
    8x PoE++
    -
    -
    PoE Budget
    -
    -
    150W
    -
    -
    Management Layer
    L3+
    L3+
    L3+
    L3+
    L3+
    Power Supply
    1 Built-in
    1 Built-in
    1 Built-in
    1+1 Hot-pluggable
    1+1 Hot-pluggable
    Fan
    3 Built-in
    2 Built-in
    2 Built-in
    3 Built-in
    2+1 Hot-pluggable
    OSPF, BGP, VXLAN, BGP-EVPN, MLAG, IPV6, PTP, QoS, MPLS
    Yes
    Yes
    Yes
    Yes
    Yes
