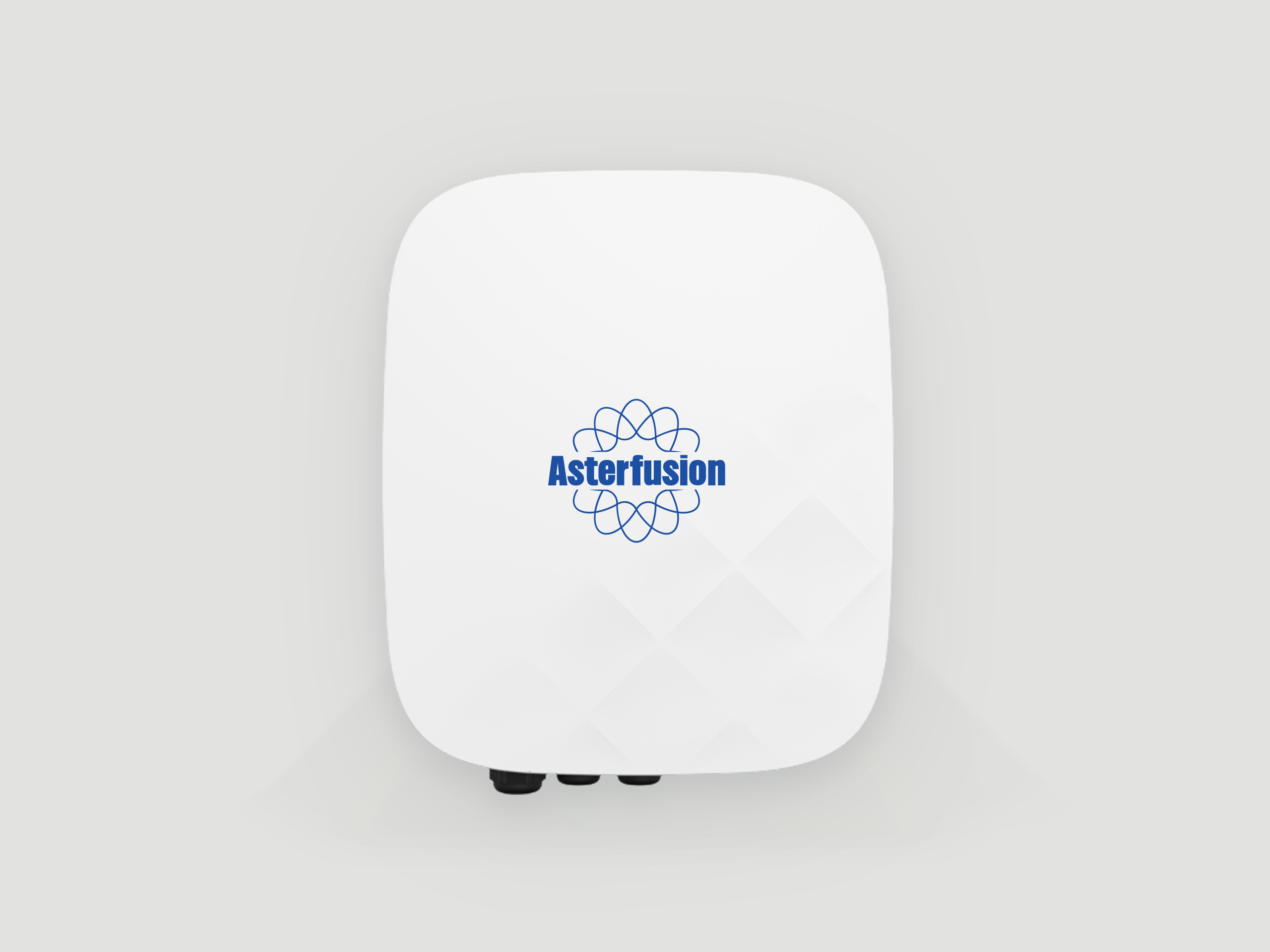

Outdoor Tri-band WiFi 7 Access Point Support 18000Mpbs Support OpenWiFi

AP7151

  • Full 802.11k/v/r with sub-10ms roaming latency
  • 1× 10G RJ-45 WAN or 10G SFP+ uplink, plus 1× 2.5G LAN port
  • Simultaneous 4×4 MIMO on 2.4G/5G/6G with total speeds over 17 Gbps
  • Supports 100+ concurrent connections for stadiums, campuses
  • Support OFDMA, 4096-QAM, multi-link operation (MLO), and BSS coloring
  • IP-rated enclosure with external high-gain antennas for wide-area outdoor coverage
Please login to request a quote

Outdoor Tri-band WiFi 7 (802.11be) 18000Mpbs Wireless Access Point Seamless Roaming

The AP7151 is a carrier-grade outdoor tri-band Wi-Fi 7 access point engineered for high-density deployments in campus, public, and industrial environments. With 4×4×4 MIMO on all bands and 160 MHz channel width on 5 GHz and 6 GHz, the AP7151 delivers an aggregate throughput exceeding 17 Gbps—including up to 688 Mbps @ 2.4 GHz, 5.7 Gbps @ 5 GHz, and 11 Gbps @ 6 GHz. Designed for durability and extended coverage, it features external high-gain antennas and supports both 10G WAN copper and 10G optical uplinks, along with a 2.5G LAN port for extended flexibility. Fully compatible with TIP OpenWiFi controllers, including Asteria Controller, the AP7151 is equipped for long-term scalability with zero vendor lock-in and permanent licensing.

Ideal Use Cases

  • University & Corporate Campuses: High-speed, seamless Wi-Fi coverage across outdoor quads and walkways
  • Public Parks & City Wi-Fi: Wide-area deployment with secure access and controller-based management
  • Stadiums & Venues: High-capacity handling with multi-SSID segmentation for public and VIP networks
  • Smart Industrial Zones: Weatherproof performance with fiber-ready backhaul and long-distance coverage

Specifications

Interface WAN Port1x10G SFP+
1×10/100/1000/2500/10000 Mbps
Interface1×10/100/1000/2500 Mbps
Input Power Support PoE 802.3at Support 12V 3A DC2.0 inputMultiple SSIDs8 per radio, 24 in total
MIMO4 x 4 x 4Power Consumption<60W
Wireless Standards802.11a/b/g/n/ac/ax/bePower SupplyDC2.0 12V 3A
Recommended Access Clients150+Frequency Band2.4 GHz | 5 GHz | 6 GHz
Antenna TypeBuilt-in omnidirectional AntennaTransmission Rate18000Mpbs
Antenna gain2.4GHz 4 x 1.7dBi | 5GHz 4 x 4dBi | 6GHz 4 x 4dBiPeak Data Rate2.4GHz: 688Mbps | 5GHz: 5764Mbps | 6GHz: 11528Mbps
Max Transmit Power20dBm(2.4G)/ 21dBm(5G)/21dBm(6G)Reference Coverage Radius50 meters +
Operating Temperature -20ºC ~ 55ºCMountPanel
Dimensions (HxWxD)318.4mm x 269.4mm x 90.2mmHumidity 5%~95% non-condensing

High-Performance Wi-Fi 7 AP with Advanced Features

icon-wifi

Wi-Fi 7 (802.11be) Standards

  • WiFi7 standard 2.4G/5GHz dual radio, up to 18Gbps throughput.
  • 40/160/320 MHz channel width support.
  • Support for MU-MIMO and OFDMA.
  • Backward compatible with 802.11a/b/g/n/ac/ax.
icon-customer-wifi-experience

Improve Wireless Experience

  • Intelligent selection of the best channel based on the surrounding RF.
  • Support 802.11k/v/r protocols, roaming handoff delay is ≤10ms.
  • Support bandwidth restrictions based on SSID/terminal/service, etc.
  • Support WMM and target wake time (TWT).
icon-security-wi-fi

Enterprise Security

  • WPA3 provides encryption and authentication for enterprise networks.
  • Offer secure authentication solutions across 802.1x, Portal, MAB, WAPI, CA certificate, and others for enterprises, institutions, and hospitals.
icon-management-maintenance

Management & Maintenance

  • OpenWiFi standard management with Asteria Campus Controller.
  • Equipped with Asterfusion CX-M series OpenLAN Switching (OLS) standard POE switch, unified wired and wireless zero-touch provisioning (ZTP) and management can be achieved.
  • Real-time downlink client status reporting to controller. O&M engineers can quickly locate and fix wireless network failures by viewing wireless users’ Internet access status.

Software Features

→WLAN←
    •  Support MU-MIMO,  OFDMA, TWT, BSS Color
    • Recommended Access Clients: 150+
    • Forwarding Mode: Direct forwarding / Tunnel forwarding
    • Support SSID Hiding, Access Limitations of Low-rate Clients, Air Time Fairness (ATF)
→Radio Management←
    • Support DFS, ACS
→Network←
    • Support DHCP, VLAN, VXLAN, ACL, LLDP
→Roaming←
    • Support 802.11k/v/r
→Security←
    • Encryption: WPA-PSK / WPA2-PSK / WPA-Enterprise / WPA2- Enterprise / WPA3-Enterprise
    • Authentication: Built-in/External Portal, and RADIUS
→Client Isolation←
    • VLAN-based Isolation: Support
    • Isolation between VAPs: Support
    • SSID based Isolation: Support
→Quality of Service←
    • QoS: Rate limit based on SSID, Port-based DSCP, DNS-based DSCP
    • WMM: Support
→Management←
    • Support NTP, ZTP
    • Support Network telemetry
    • Device Management: SSH, Syslog, Asteria Campus Controller

Warranty

This model is backed by a 2 year limited hardware warranty. Multiple extended support options, including advanced replacement and 24×7 support services, are available. Contact us for complete details.

Warranty

The Asterfusion AP6020W indoor wireless access points is backed by a 2-year limited hardware warranty. Multiple extended support options, including advanced replacement and 24×7 support services, are available. Contact us for complete details.
