OSFP 800G DR8 1310nm 500m PAM4 MPO-16 APC SMF Optical Transceiver Module

OT-800G-OSFP-DR8

Please login to request a quote
  • Maximum power consumption: 16.5W.
  • Built-in DSP chips with KP-FEC.
  • OSFP MSA, CMIS, and IEEE 802.3 compliant.
  • 8×106.25Gbps (53.125GBd PAM4) electrical interface.
  • 8×106.25Gbps (53.125GBd PAM4) optics architecture.
  • 800Gbps data transmission over 500m on SMF.
  • MPO-16 receptacles and built-in digital diagnostics.
  • Operating temperature range (0℃ to +70℃).

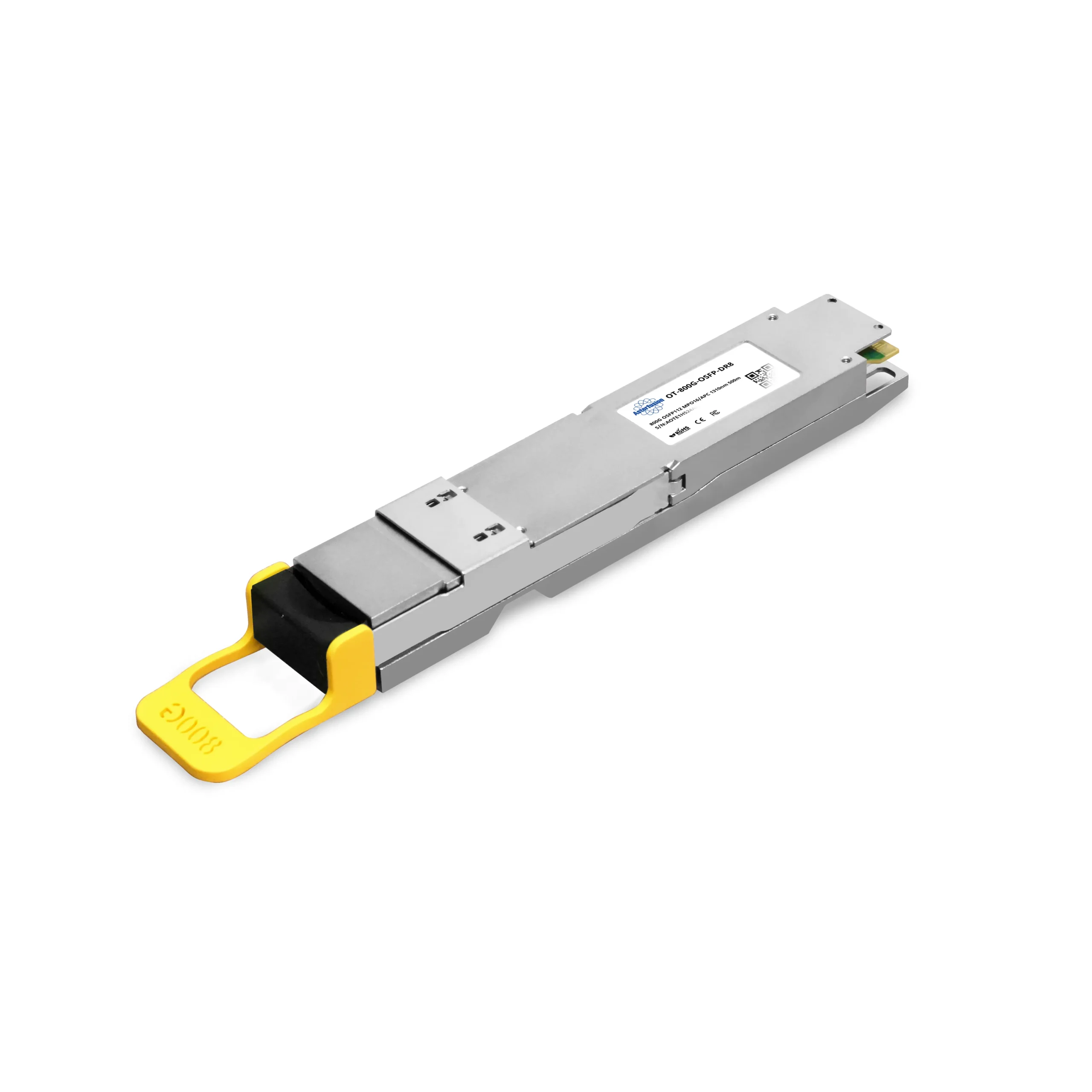

800g-osfp-dr8-optical-transceiver-module-front

MSA Compatible 800G OSFP DR8 Optical Transceiver Module (SMF 1310nm, 500m, PAM4, MPO-16 )


The 800G OSFP transceiver is able to support 8×106.25Gbps (total 8×106.25Gbps) data rates by using 53.125GBd PAM4 optical and electrical interfaces that allow seamless transmission of huge data volumes over large distances. It was designed to work with 500 meters data transmission systems that are used in the modern day data center. It utilizes the most strong DSP chip that delivers unbeatable performance and efficacy. The DR8 OSFP optical module can achieve a maximum distance of up to 500 meters using SMF with KP-FEC (Forward Error Correction), making it perfect for long-haul data center interconnects. Integrates with CMIS-compliant management systems to provide live monitoring and control. This transceiver is an innovative solution for high-speed connectivity with long-range in cloud fabrics, data centers, and AI infrastructure.

Specification

Form FactorOSFPVendor NameAsterfusion
MediaSMFMax. Cable Distance500m
ConnectorMPO-16DDM/DOMSupported
Wavelengths Range1310nmPower Consumption<16.5W
Data Rate800GbpsHumidity(non-condensing)5-95%
Extinction Ratio>3.5dBSupply Voltage3.3V
Operating Case Temperature0 to 70°C (32 to 158°F)Electrical Interface Hot pluggable
Storage Temperature
-40 to 85°C (-40 to 185°F)ApplicationData center network
Part NumberOT-800G-OSFP-DR8ProtocolsOSFP MSA and CMIS compliant

Block Diagram

800g-osfp-dr8-optical-transceiver-block-diagram

Certifications

icon-FC
icon-CE
icon-RoHS

Connectivity solution

800G-OSFP-DR8-optical-transceiver-connect-two-800G-port-switches
800G-OSFP-DR8-optical-transceiver-connect-800G-switch-to-400G-switch
800G-OSFP-DR8-optical-transceiver-connect-800G-switch-to-8x100G-NICs

Related Products

OT-800G-QDD-VR8OT-800G-OSFP-SR8OT-800G-QDD-DR8OT-800G-OSFP-DR8
ConnectorMPO-16/APCMPO-16/APCMPO-16/APCMPO-16/APC
Modulation8x106.25Gbps PAM48x106.25Gbps PAM48x106.25Gbps PAM48x106.25Gbps PAM4
Wavelengths Range850nm850nm1310nm1310nm
Max. Cable Distance50m(OM4)/30m(OM3)100m(OM4)/60m(OM3)500m500m
Transmitter TypeVCSEL
VCSEL
SiPhSiPh
DDM/DOMSupportedSupportedSupportedSupported
Extinction Ratio>2.5dB>2.5dB>3.5dB>3.5dB
Operating Case Temperature0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Power Consumption<13.5W<13.5W<16.5W<16.5W
ApplicationEthernet
Telecom
Data Center
2x400G SR4 Ethernet		Ethernet
Telecom
Data Center
2x400G SR4 Ethernet		Ethernet
Telecom
Data Center
800G-DR8 Ethernet		Ethernet
Telecom
Data Center
800G Ethernet
