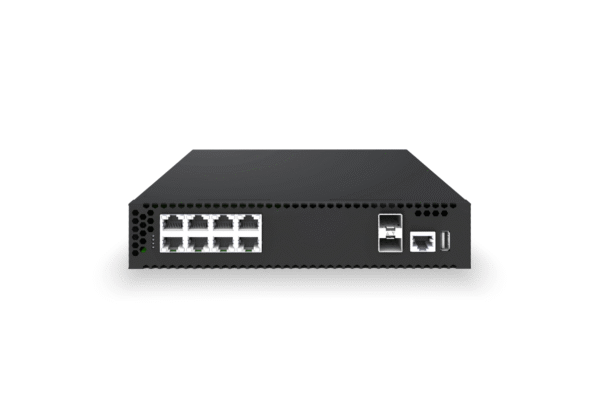

CX102S-8MT-M-SWP

8×2.5G RJ45 POE++ @150W L2/3 Access Switch, 2x10Gb SFP+ Uplinks, Enterprise SONiC Ready, MLAG VXLAN Support

  • 8 Ports 2.5G RJ45 with 10G uplinks
  • Support 8-port PoE++ (802.3bt)@150W
  • Rich Layer 2/3 features
  • Enterprise SONiC Distribution preload
Please login to request a quote
8-Port-2.5G-L2-L3-Access-Switch-1
8-Port-2.5G-L2-L3-Access-Switch-2
8-Port-2.5G-L2-L3-Access-Switch-3
8-Port-2.5G-L2-L3-Access-Switch-4

8-port POE++ 2.5G L2/L3 Access Switch, 8×2.5G RJ45 POE++ @150W, 2x10Gb SFP+ Uplinks, Enterprise SONiC Ready, Marvell AlleyCat 5Y

The 8-port gigabit POE++ switch with 8x 2.5G ports and 2x 10G SFP+ connections. It has a maximum of 8 PoE++ (802.3bt) ports for powering associated IP phones, wireless access points, and other standards-compliant PoE and PoE+ network devices. It uses commercial SONiC NOS-AsterNOS and supports a wide range of layer 2 and layer 3 services, including routing protocols such as OSPF and BGP and additional capabilities such as MLAG and IPV6. This access switch is a compact, cost-effective option for college, SMB, and enterprise networks.

Specifications

Network Interface8 x 2.5G RJ45 PoE++, 2 x 10G SFP+Managed Interface
1 x USB2.0, 1 x Console RJ45
Switching Capacity72GbpsPoE Power Budget150W (max.)
Chip ModelMarvell Prestera Alley Cat5YPoE Power Output Per PortPoE++: 60W; PoE+: 30W
Forwarding Rate41.6MppsPoE StandardIEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
Packet Buffer3MBInput Voltage Range100 - 240V AC
AirflowFront to RearMax. Power Consumption39W
Ambient Operating Temperature0 - 45 ℃Power Supply100W
Ambient Relative Humidity5% - 90% (non-condensing)Power Module1 Built-in Power
Dimension (HxWxD)44 x 215 x 310mmFan Modules2 Built-in Fans
Weight2.2KGsRack Space1RU

Hardware Panel

8-port-2.5g-poe-plus-plus-switch-hardware-panel

Software

Features

layer-2-features-icon

Layer 2 Features

  • 4K VLANs
  • Voice VLAN
  • Multiple Spanning Tree Protocol
  • QinQ
  • Link Aggregation Control Protocol
  • Multi-Chassis Link Aggregation
  • VLAN Trunking
  • Link Layer Discovery Protocol (LLDP)
  • LLDP Enhancements for PoE
  • Port Isolation
  • Jumbo Frames (9216 Bytes)
  • IGMP Snooping
  • Storm Control
  • Monitor Link
  • BPDU Guard, BPDU Filter
  • Loopback Detection
layer-3-features-icon

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • Route Map
  • VRRP
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP
security-features-icon

Security Features

  • Service ACLs
  • ACL Logging and Counters
  • Control Plane Policing (CoPP)
  • Dynamic ARP Inspection (DAI)
  • IP Source Guard v4/v6
  • DHCPv4/v6 Relay
  • DHCPv4/v6 Snooping
  • ND Snooping
  • 802.1x Authentication
  • Portal Authentication
  • MAC Authentication Bypass (MAB)
  • Dynamic VLAN Assignment
  • TACACS+
  • RADIUS
  • IPSG/DAI/SAVI
management-and-monitoring-icon

Management and Monitoring

  • Asteria Campus Controller
  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status
quality-of-service-icon

Quality of Service (QoS)

  • 8 Queues per Port
  • 802.1p Based Classification
  • DSCP Based Classification
  • Strict priority queueing
  • DWRR Scheduling
  • Policing/Shaping
  • Rate Limiting
ptp optimized sonic switches

Enterprise SONiC 8 Ports 2.5G POE++ Switches with PTP Support (Optional)

The CX102S-8MT-SWP 8 port 2.5G PoE++ switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asterfusion leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class A with a maximum time error of ≤50 ns. →For More←

Network Packet Broker Functionality (Optional)

The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC. This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication. →For more←

the-software-architecture-of-the-sonic-based-packet-broker

Datasheet

Datasheet CX-M Series Access Switches

Warranty

This model is backed by a 2 year limited hardware warranty. Multiple extended support options, including advanced replacement and 24×7 support services, are available. Contact us for complete details.
